Direct Contact Heat Exchanger

Heat transfer. Thought through.

An ongoing graduation project exploring how a direct contact heat exchanger can transfer heat from hot particles to air—while making its containment more practical.

My role
Graduation project · Design & analysis
Period
Jan 2026 — Present
Tools & methods
CAD · Concept evaluation · ANSYS Fluent
Project stage
Ongoing · Not fully validated
The decision

Separate high-temperature exposure from pressure containment using a cooled double shell.

The evidence

Original CAD and concept evaluation; air-only CFD scope, with full thermal validation still ahead.

KSU Solar Tower application

Two shells.
Different jobs.

A cooled outer path separates high-temperature exposure from pressure containment.

900–1,000°C Hot-particle inlet design range

Design conditions from the project brief.
Not measured prototype performance.

Exterior configuration · report PDF p. 49, Fig. 4.4.

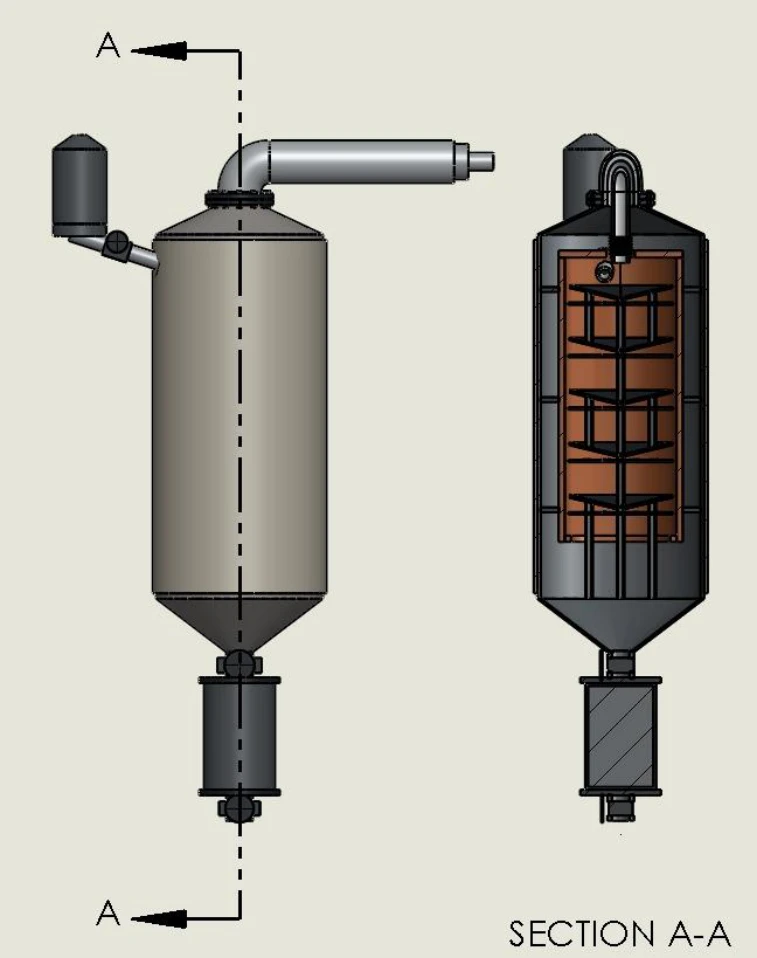

Section view · report PDF p. 49, Fig. 4.4.

01 / The thermal challenge

Recover the heat.
Manage the exposure.

In a particle-based solar thermal system, hot particles carry energy that must be transferred into an air stream. The exchanger has to provide contact, guide both flows and accommodate demanding thermal conditions.

The report establishes a particle inlet design range of 900–1,000°C, an air inlet condition of 180°C and a 90% effectiveness target. These are design requirements, not achieved results.

The selected concept uses staged counterflow contact and a cooled double-shell arrangement. Its purpose is to reduce the need for the pressure-containing structure to experience the highest temperatures directly.

02 / Compare before committing

Three ways to bring
particles and air together.

Selected for development

Multistage expanded bed

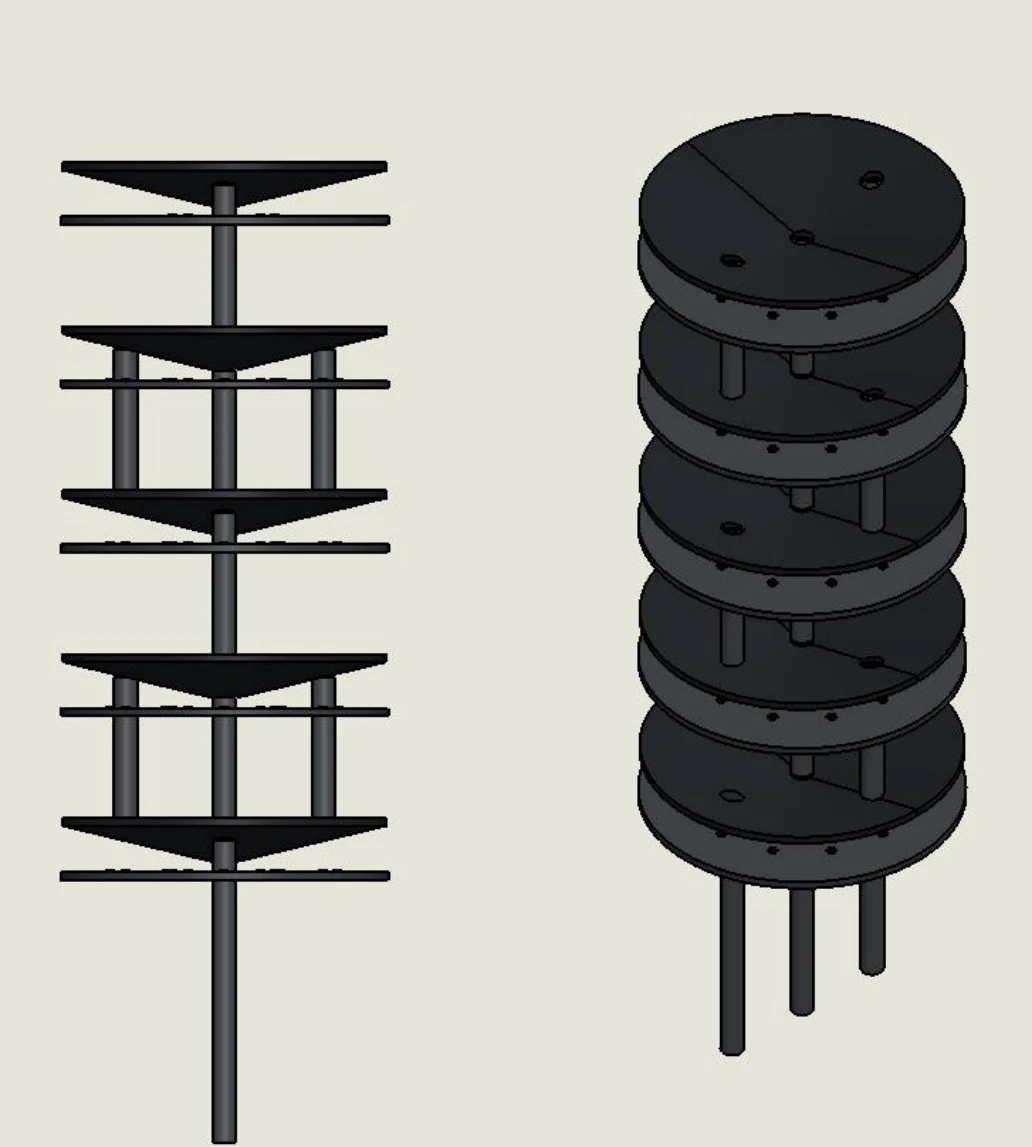

Staged beds and downcomers support counterflow contact within the double-shell concept.

Alternative

Falling particle curtain

A different contact pattern, evaluated alongside the staged approach.

Alternative

Moving packed bed

Another route to particle-to-air contact, with different flow and integration trade-offs.

Qualitative summary of the report’s concept evaluation. Numerical aggregate scores are omitted because the source table contains inconsistent totals.

03 / Follow the air

Down the outside.
Up through the heat.

  1. Enter the outer passage

    The incoming air travels downward through the annular space, cooling the shell arrangement.

  2. Turn at the bottom

    The lower region redirects the stream upward into the internal heat-transfer path.

  3. Meet the falling particles

    Air rises through porous stages while particles descend through downcomers.

  4. Leave through the central outlet

    The flow exits through the central pipe-in-pipe arrangement.

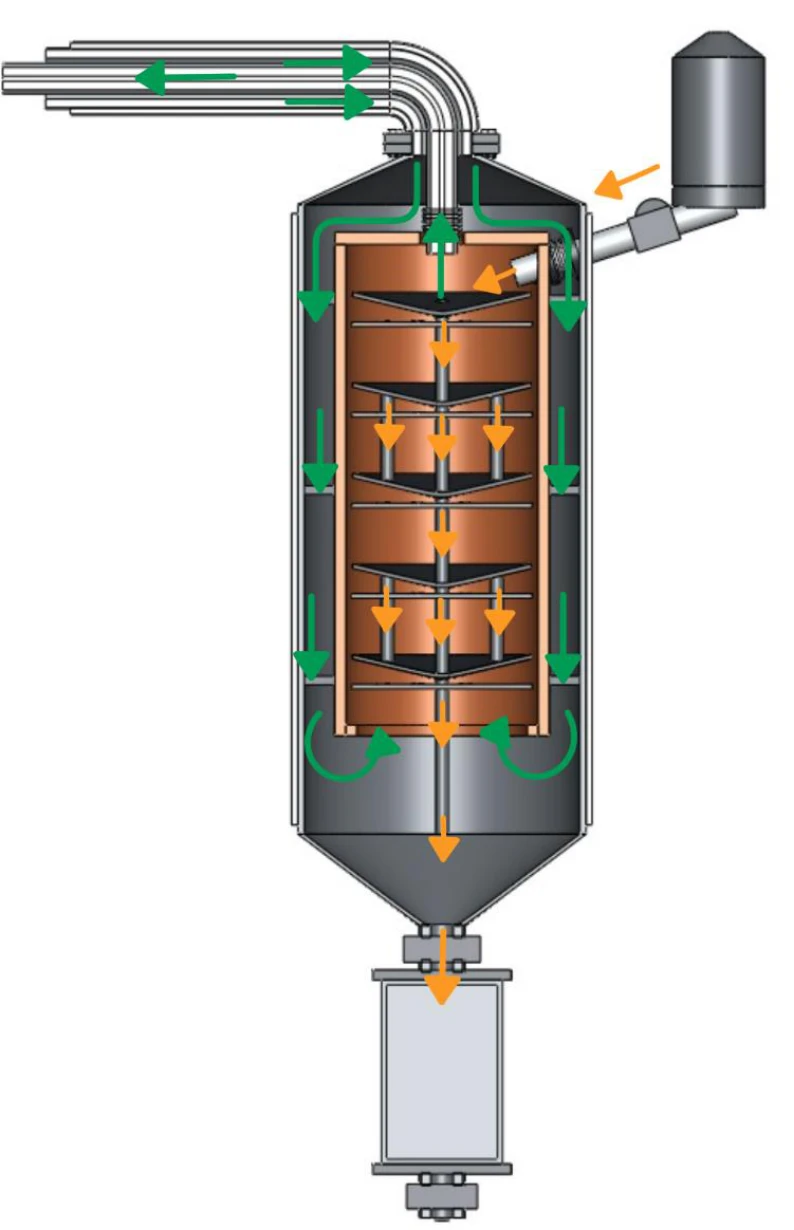

Original airflow schematic · report PDF p. 50, Fig. 4.5. This is a flow-path illustration, not a CFD contour.

04 / Simulation, with boundaries

A useful model starts
with an honest scope.

The current CFD work is air-only analysis in ANSYS Fluent: airflow distribution, recirculation and pressure losses support design evaluation.

That does not validate the complete multiphase particle-to-air heat-transfer process. The supplied report documents the concept and CAD stage; it does not include the newer air-only simulation exports, so no pressure contours, velocity results or CFD performance numbers are reproduced here.

Still to establish

Full coupled heat-transfer performance, experimental validation, and a completed material-cost comparison. A material-cost reduction is a potential benefit, not treated as a verified outcome.

The takeaway

Separate the functions.
Then test the assumptions.

The double-shell concept turns one difficult material problem into distinct thermal and structural roles. The next challenge is to verify that the flow distribution, particle contact and practical construction support the intended benefit.
